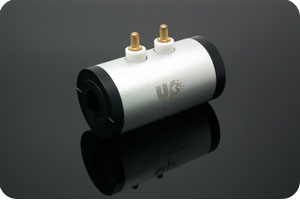

KD*P电光Q开关

E-O Q Switch alters the polarization state of light passing through it when an applied voltage induces birefringence changes in an electro-optic crystal such as KD*P. When used in conjunction with polarizers, these cells can function as optical switches, or laser Q-switches.

Our EO Q-switch employs the finest strain-free, highly deuterated KD*P available. Based on  advanced crystal fabrication and coating technlogy, we can offer a variety of laser wavelengths EO Q switchs which exhibits high transmission (T>97%), high damaged threshold (>500W/cm² )and high extinction ratio (>1000:1).



Applications: · OEM laser systems · Medical/cosmetic lasers · Versatile R&D laser platforms · Military & aerospace laser systems



FEATURES	BENEFITS
CCI Quality - economically priced	Exceptional value
Finest strain-free KD*P	High contrast ratio
	High damage threshold
	Low 1/2 wave voltage
Space efficient	Ideal for compact lasers
Ceramic apertures	Clean and highly damage-resistant
High contrast ratio	Exceptional hold-off
Quick electrical connectors	Efficient/reliable installation
Ultra-flat crystals	Excellent beam propagation
Electro-optical @ 1064nm
1/4 Wave Voltage:	3.3 kV
Transmitted Wave Front Error :	< 1/8 Wave
ICR	>2000:1
VCR	>1500:1
Capacitance:	6 pF
Damage Threshold	> 500 MW / cm2 @1064nm, 10ns

Housing Dimensions	EOQ-208	EOQ-210	EOQ-212
Aperture	8 mm	10 mm	12 mm
Length	39 mm	39 mm	45 mm
Diameter	25.35 mm	25.35 mm	25.35 mm
